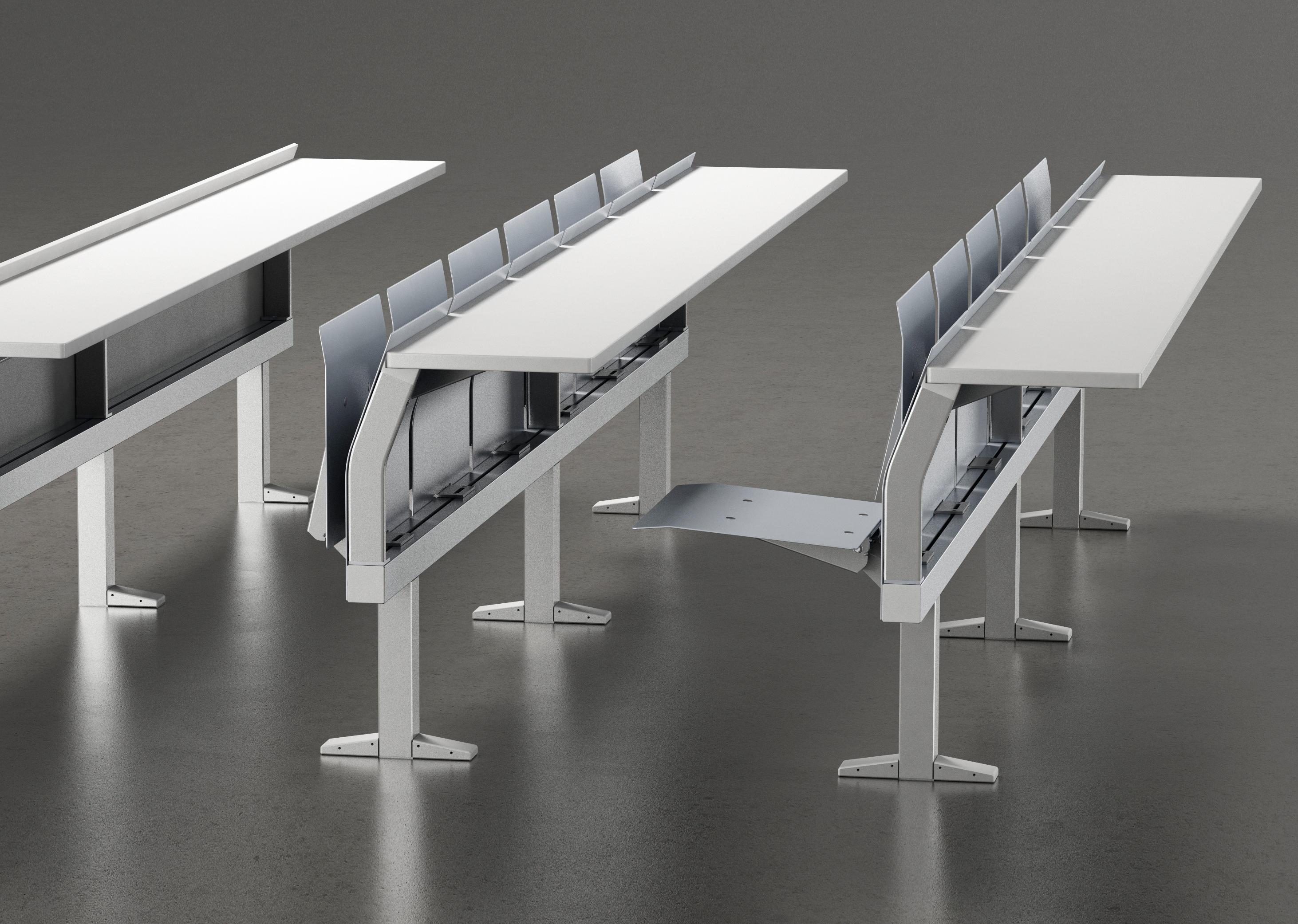

Integrated and continuous system of seats and tables that can be arran- ged in a straight line or curved composition, on large steps or on inclined floors.

Model types:
First row bench with fixed or tip-up writing table. Intermediate row bench with fixed or tip-up table and tip-up seat. End row with tip-up seat.

Components:
Bars: anodized extruded aluminium horizontal bars: rectangular section upper bar, rounded square section lower bar, both with special internal ribbing and external grooves which enable the uprights, writing tables and feet to be positioned and fixed, without predefined drilling, changeable distance modular set-up. Uprights in pressed, painted structural sheet steel, equipped at the ends with plates which connect to the beams. Feet: pressed sheet steel feet, set up for floor fixing and complete with closing guard in grey or anthracite technopolymer. All metal structures are coated with RAL 9006 grey, anthracite or white epoxy-polyester powder paint. The centre-to-centre distance between seats can be adjusted: minimum 51 cm.

First row panels:
Single vertical Panels for straight-line or curved installations:
- bi-laminate beech, oak, limed oak, wengè, anthracite RAL 7015, grey RAL 9006 finish plywood.
- beechwood, oak, limed oak and wengè finish plywood treated with transparent polyurethane varnish, and with non-reflective, non-slip and scratchproof properties.
Also available in sheet steel or upholstered versions, on request for customized projects. For straight-line compositions are available also horizontal melamine faced panels.

Intermediate and end row backrests and seats:
- bi-laminate beech, oak, limed oak, wengè, anthracite RAL 7015, grey RAL 9006 finish plywood.
- beechwood, oak, limed oak and wengè finish plywood, treated with transparent polyurethane varnish, and with non-reflective, non-slip and scratchproof properties.
- upholstered with plywood internal support and polyurethane foam pad- ding, fully covered in fabric or imitation leather.
- 3mm thick sheet metal, aluminium sheet seat and steel sheet backrest, coated in RAL 9006 grey, anthracite or white scratchproof epoxy-polye- ster powder paint.
Tip-up seat mechanism with automatic return device featuring a support plate and plates for connection to the pressed steel beams, seat rota- tion devices and support plate in pressed steel in scratchproof RAL 9006 grey, anthracite or white-coloured epoxy-polyester paint.

Tip-up foldaway writing table:
With anti-panic movement. In beech, oak, limed oak, wengè, RAL 9006 grey or RAL 7015 anthracite bi-laminate chipboard top. Matching 14mm ABS edging. Top dimensions: 45 x 30 cm. Technopolymer support com- ponents and sliding guides.

Fixed writing table:
In beech, RAL 9006 grey or RAL 7015 anthracite bi-laminate chipbo- ard, and ABS edging with rounded corners. Thickness: 30 mm. Supports made of painted metal brackets.

Accessories:
Arms (for intermediate rows with tip-up table or for end rows) with grey RAL 9006, anthracite or white painted tubular and sheet steel structu- re; solid beechwood, oak, limed oak and wengè or upholstered armrest. 2 mm steel plate rack painted RAL 9006 grey, anthracite or white. Interrow bar for installation without floor-fixing. Seat number. Row number.

Variations:
The system can be cabled to run in sockets and data lines. Curved arrangement with minimum radius of 500 cm. Assembly on inclined surface. Step configuration (maximum step height of 35cm).

Tested according to European standards: UNI EN 12727 and UNI EN 1730


Designer: Roberto Lucci Paolo Orlandini
