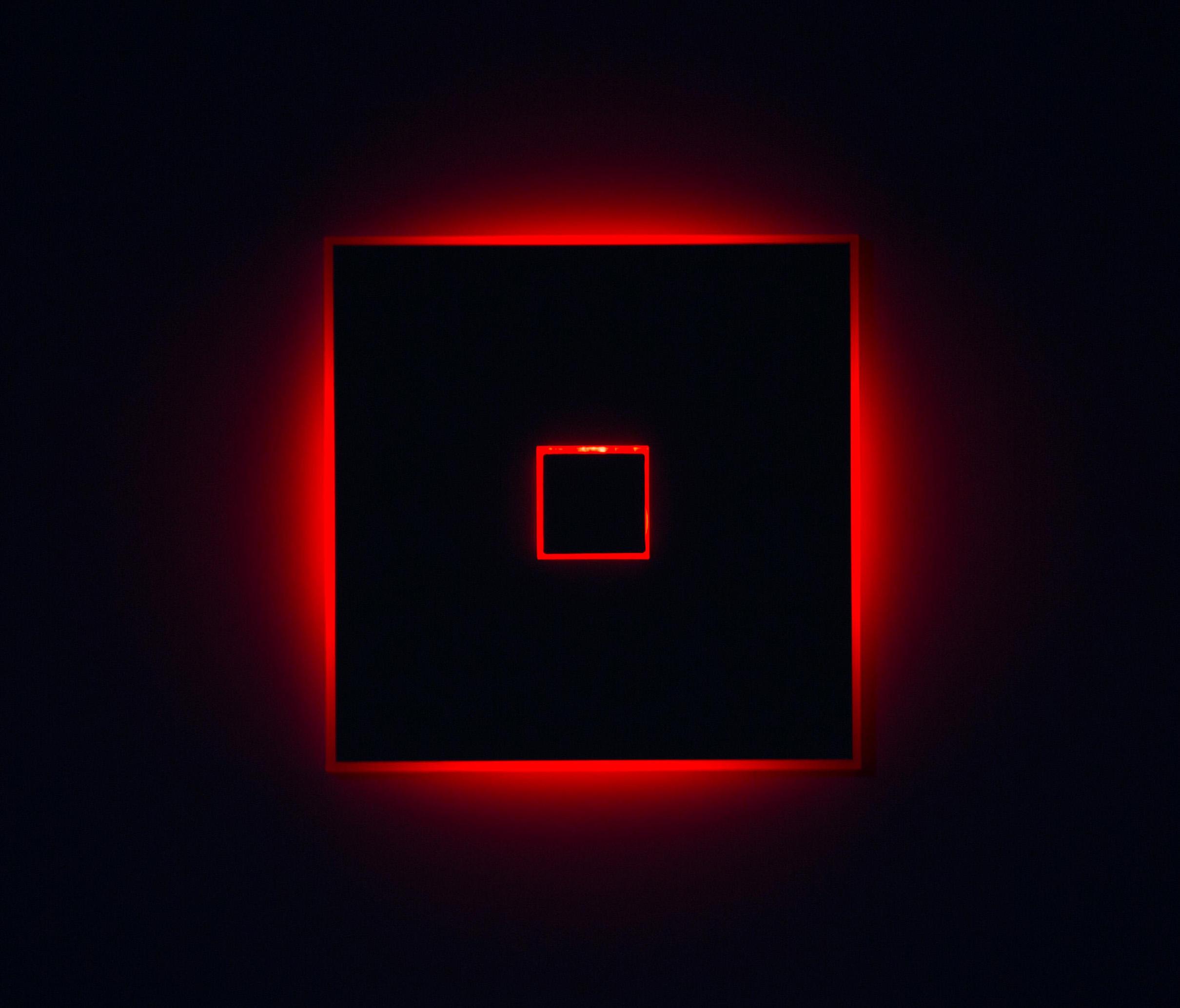

The ILLUME range combines the functions switch, technology and lighting in one element. The frame diffuses the light on the four sides of the switch which creates a special atmosphere. The “glow in the dark” determines the theme for each room, whether its bright white, intense red, warm orange or powerful blue. A switch and orientation light in one brings your vivid imagination to light.

The ILLUME switch can be easily transformed to an orientation light by removing the cover plate and adding a blind plate : SBXT.

Available forms :
1-4 pushbuttons on a single switch
2-8 pushbuttons on a double switch
Single, double, triple sockets
Orientation light in same design
Customized version possible on request

Dimensions :
Single : 84 x 84 x 5,4mm
Double : 157 x 84 x 5,4mm
Triple : 224 x 84 x 5,4mm


Available colours :
Stainless steel, Ral9010, Chrome, Soft touch (Ral9010 / Ral9011 / Ral**), gunpowder black (Fusain), Bronze, Textured (Ral9010 / Ral9011 / Ral**), Brass, Nickel Satiné, Custom RAL.

Available connections:
24V pushbutton
24V pushbutton + LED (orange, blue, white, red)
30V KNX (option : temperature sensor)
30V KNX+ white LED (option : temperature sensor)
250V pushbutton
Qbus + RGB LED
Domintell + RGB LED


Designer: Bart Spillemaeckers
